Overview

Place of Origin:	Guangzhou, China
Brand Name:	HOSTON
Model Number:	ESS-P30-E107
Certification:	CE
Minimum Order Quantity:	1
Packaging Details:	Standard Exporting Packing. OEM brand can be printed/pasted.
Delivery Time:	15-40 days,depend on specific model and quantity
Payment Terms:	For order less than US$ 10K, full payment before production. 30% T/T Payment before production, 70% T/T Payment before shipment.

Product Details

Description

Modular design:

integrated transportation,simple and convenient.

Support multi-machine parallel use.

Scalable PV inverter;Scalable DC/DC.

Flexible configuration:

Battery intelligent constant temperature control, high protection structure design. suitable for outdoor use.

Built-in EMS, multiple operating mode options.

Cloud technology:

Support cloud technology to support remote monitoring.

Battery 100% DOD deep discharge. Cycle life over 8000 times under standard working conditions.

Safety and reliability:

System hierarchical linkage protection to fully guarantee system security.

C5 anti-corrosion grade design, to meet a variety of application environments.

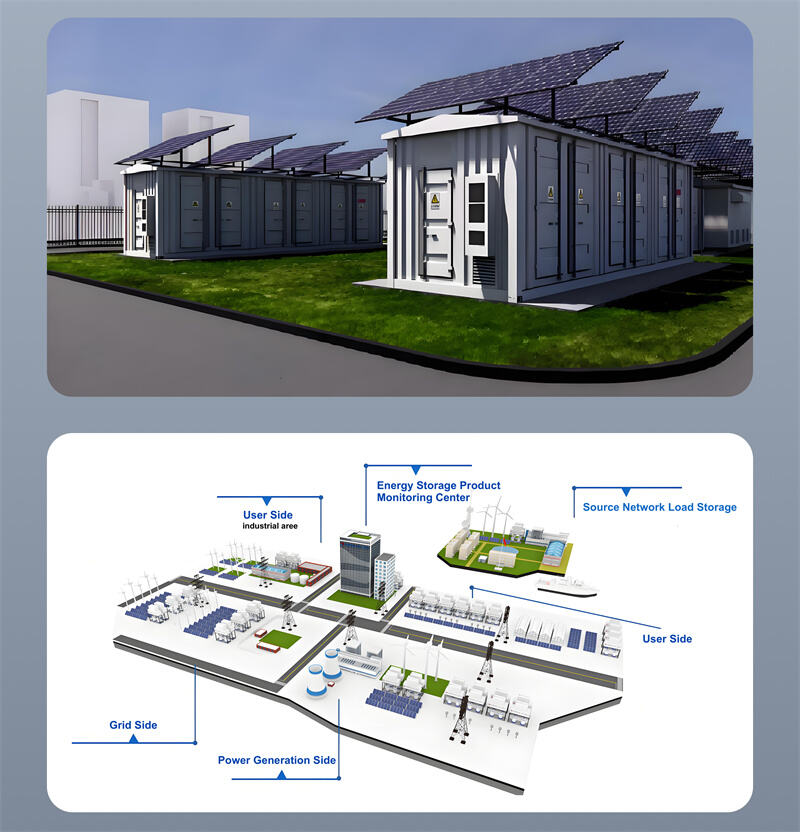

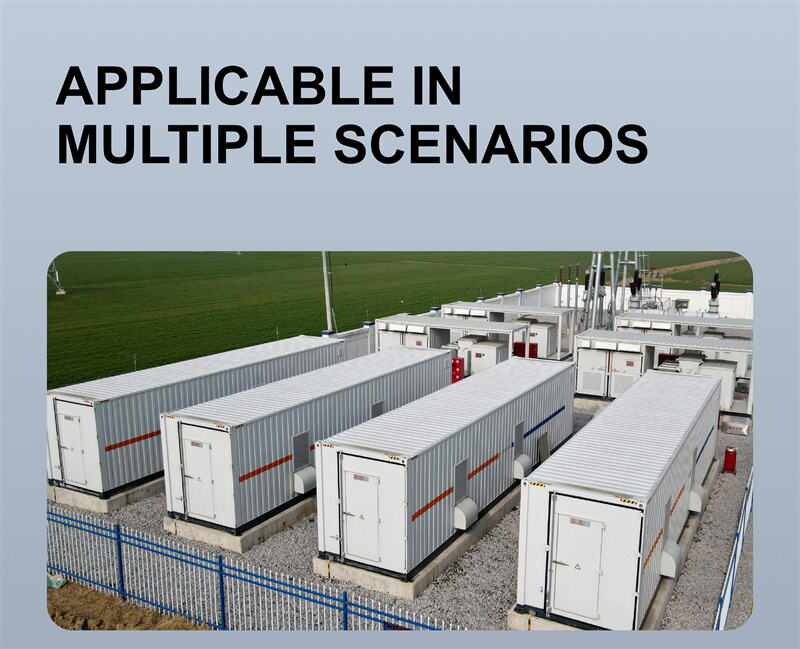

Applications

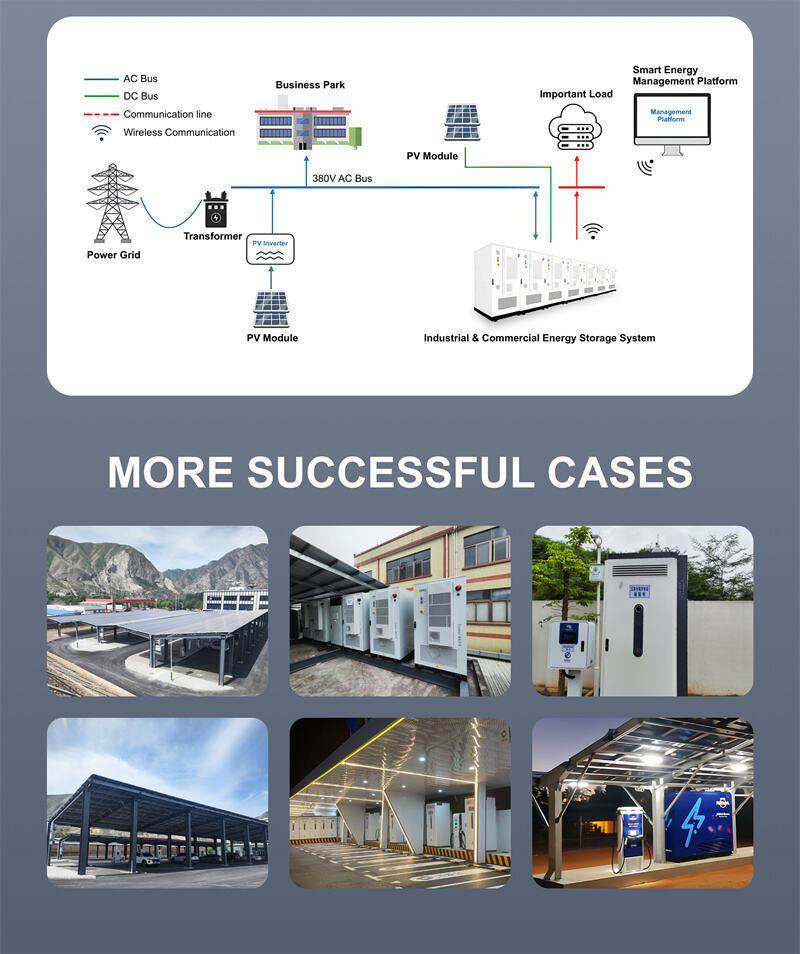

Energy storage systems are applied in various scenarios, mainly focused on the power system. They can meet peak electricity demand, provide high-power switching in a short period of time, stabilize the power grid, integrate renewable energy, achieve time transfer, and support the operation of micro grids.

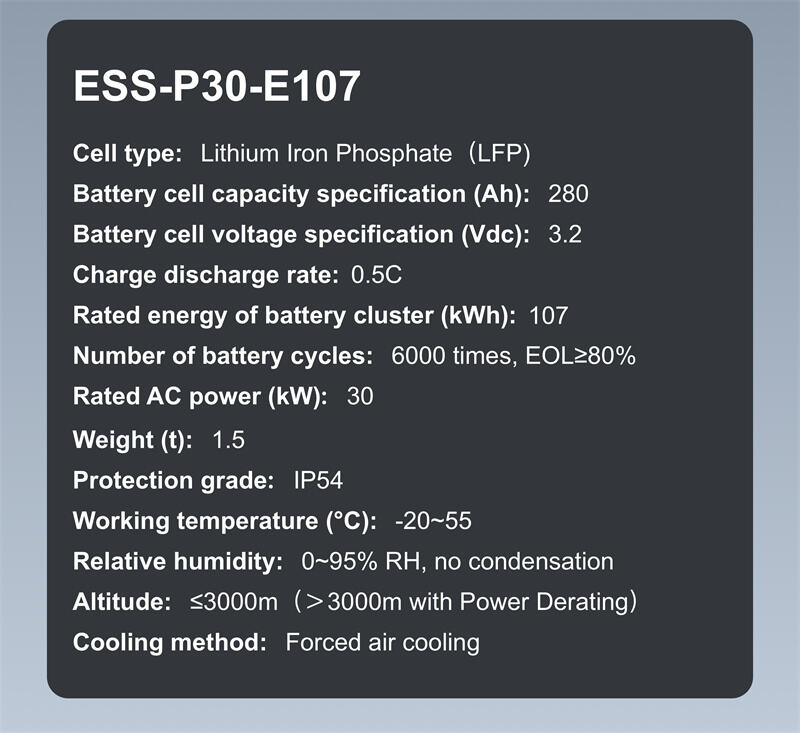

Specifications

Model NO.	ESS-P30-E107
Cell type	Lithium Iron Phosphate（LFP)
Battery cell capacity specification (Ah)	280
Battery cell voltage specification (Vdc)	3.2
Charge discharge rate	0.5C
Rated energy of battery cluster (kWh)	107
Rated voltage of battery cluster (Vdc)	384
Battery cluster voltage range (Vdc)	312~438
Number of battery cycles	6000 times, EOL≥80%
Depth of Charge and Discharge (DOD) (%)	95
Rated AC power (kW)	30
Maximum AC power (kW)	33
Rated AC current (A)	45
Maximum AC current (A)	49
Rated voltage of the power grid (Vac)	400/230
Allowable voltage range (V)	±15%
Rated frequency of the power grid (Hz)	50
Communication wiring type	3L+N+PE
Power factor	0.99(-1~1)
Isolation method	Non-Isolated
Rated AC power (kW)	30

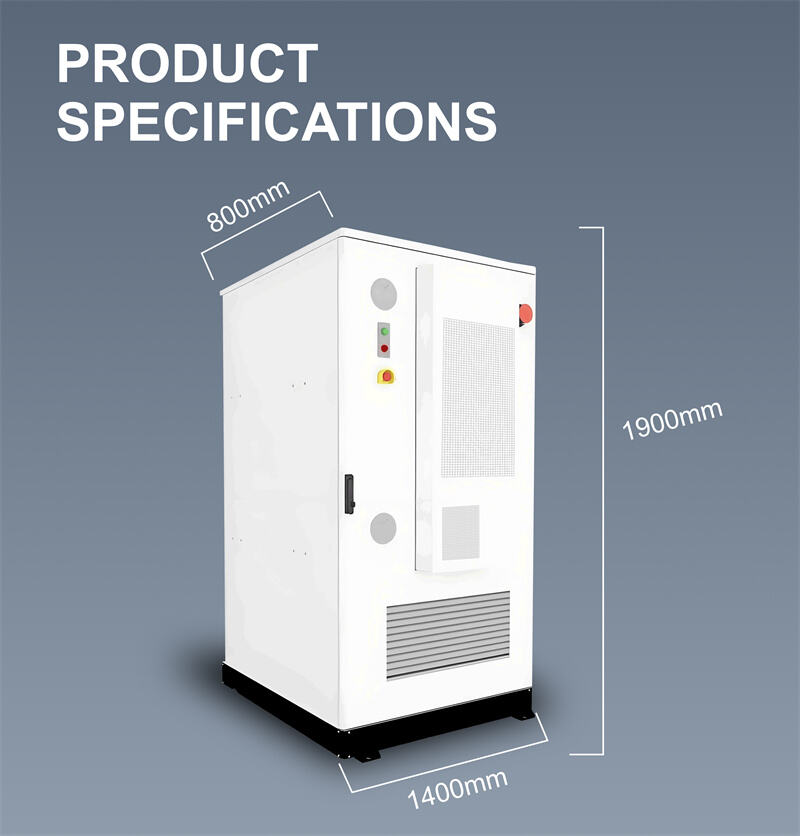

Dimensions (width x depth x height mm)	800x1400X1900
Weight (t)	1.5
Protection grade	IP54
Working temperature (℃)	-20~55
Relative humidity	0~95% RH, no condensation
Altitude	≤3000m（＞3000m with Power Derating）
Cooling method	Forced air cooling
Fire Protection System	Perfluorohexane
Communication interface	RS 485，Ethernet，4G
Communication protocol	MODBUS-RTU/MODBUS-TCP
Compliant with standards	GB36276
