Overview
Place of Origin: Guangzhou, China
Brand Name: HOSTON
Model Number: JU240CCY240
Certification: CE



Minimum Order Quantity: 1
Packaging Details: Standard Exporting Packing. OEM brand can be printed/pasted.
Delivery Time: 15-40 days, depend on specific model and quantity
Payment Terms:

*For order less than US$ 10K, full payment before production.

*30% T/T Payment before production, 70% T/T Payment before shipment.

Product Details

Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details

Description

High environmental adaptability: The shell is air isolated from the charging module to prevent heat conduction. Double layered structure and maintenance-free centrifugal fan for more environmentally friendly heat dissipation;

High compatibility: Supports CCS2,CHAdeMO

LCD screen: 15 "LCD touch screen, providing users with a better operating experience;

RFID control: Users can use RFID to start and shut down the machine;

Communication Protocol: Support OCPP1.6J, which can provide operators with real-time information about charging stations and vehicles;

Multi language customization: supports customization in multiple languages such as English, French, Spanish, Italian, Russian, etc;

Warranty period: 2 years warranty for passive components

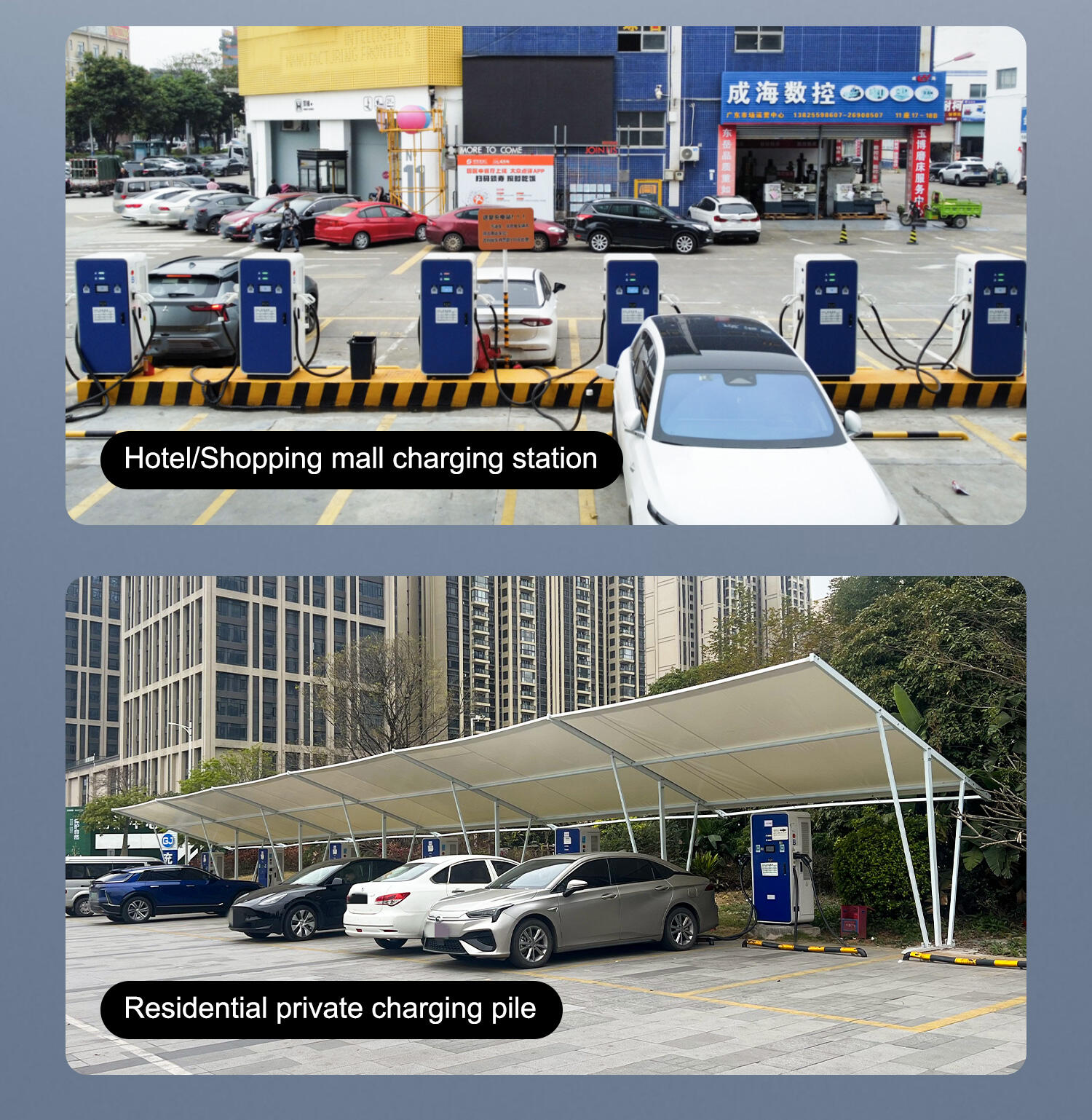

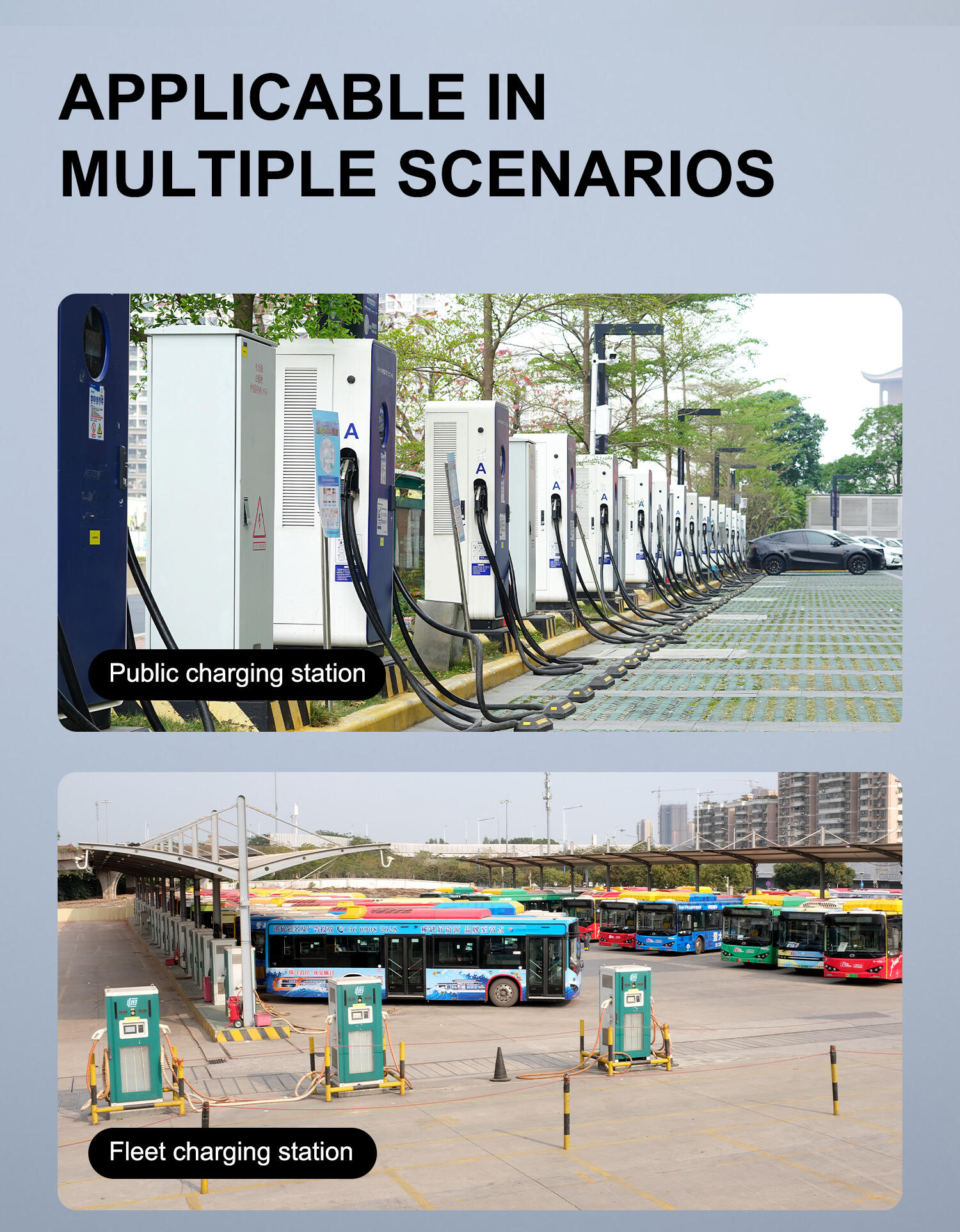

Applications

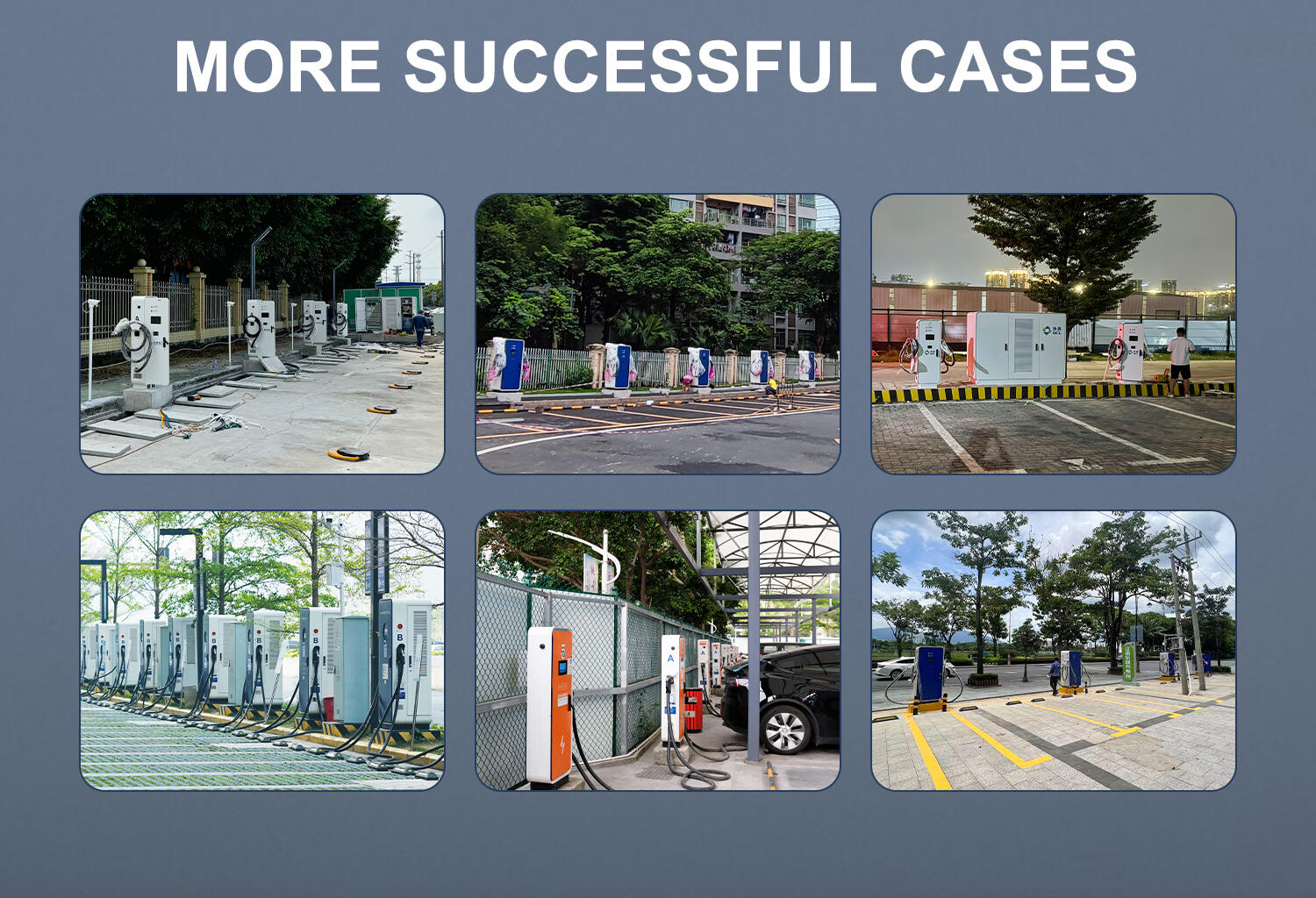

Suitable for all types of electric vehicles in the market, including electric vehicles, electric trucks, electric buses, electric yachts, electric forklifts, etc;

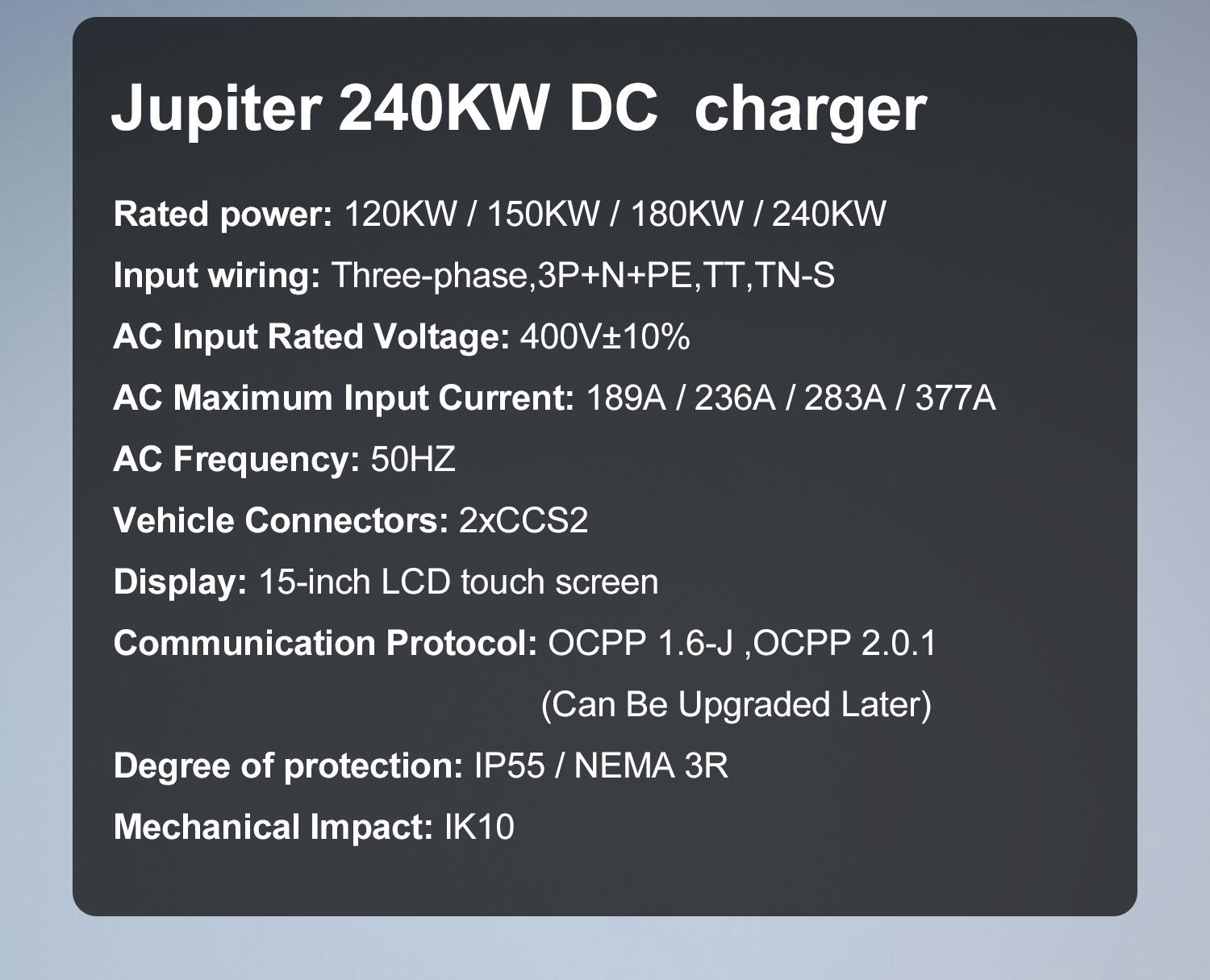

Specifications

Rated power

240kW

Input Wiring

Three-phase,3P+N+PE,TT,TN-S

AC Input Rated Voltage

400V ± 10%

AC Maximum Input Current

377A

AC Frequency

50Hz

Operating Temperature

‘-30℃~+50(power reduces above 50)

Operating Humidity

5%-95% without condensation

Altitude during operation

≤ 2000M

Internal Cooling Method

Forced air-cooling

Efficiency

≥ 95% (above half load)

Harmonics

iTHD ≤ 5% (above half load)

Power factor

≥0.99

Voltage Accuracy

≤ ± 0.5%

Current Accuracy

≤ ± 1%

Vehicle Connectors

2 x CCS 2

DC Output Voltage Range

200-1000V

Constant power interval voltage

300-1000V

DC Output Current Range

0~200A/0~250A/0~380A(optional)

Display

15-inch LCD touch screen

LED Indicators

Tri-colour LEDs

Emergency Stop Button

Included

Access Modes

RFID Card, QR code scanning via APP, Credit Card(optional)

Network Interface

3G/4G/Ethernet

Communication Protocol

OCPP 1.6-J ,OCPP 2.0.1 (Can Be Upgraded Later)

Remote Upgrade

YES

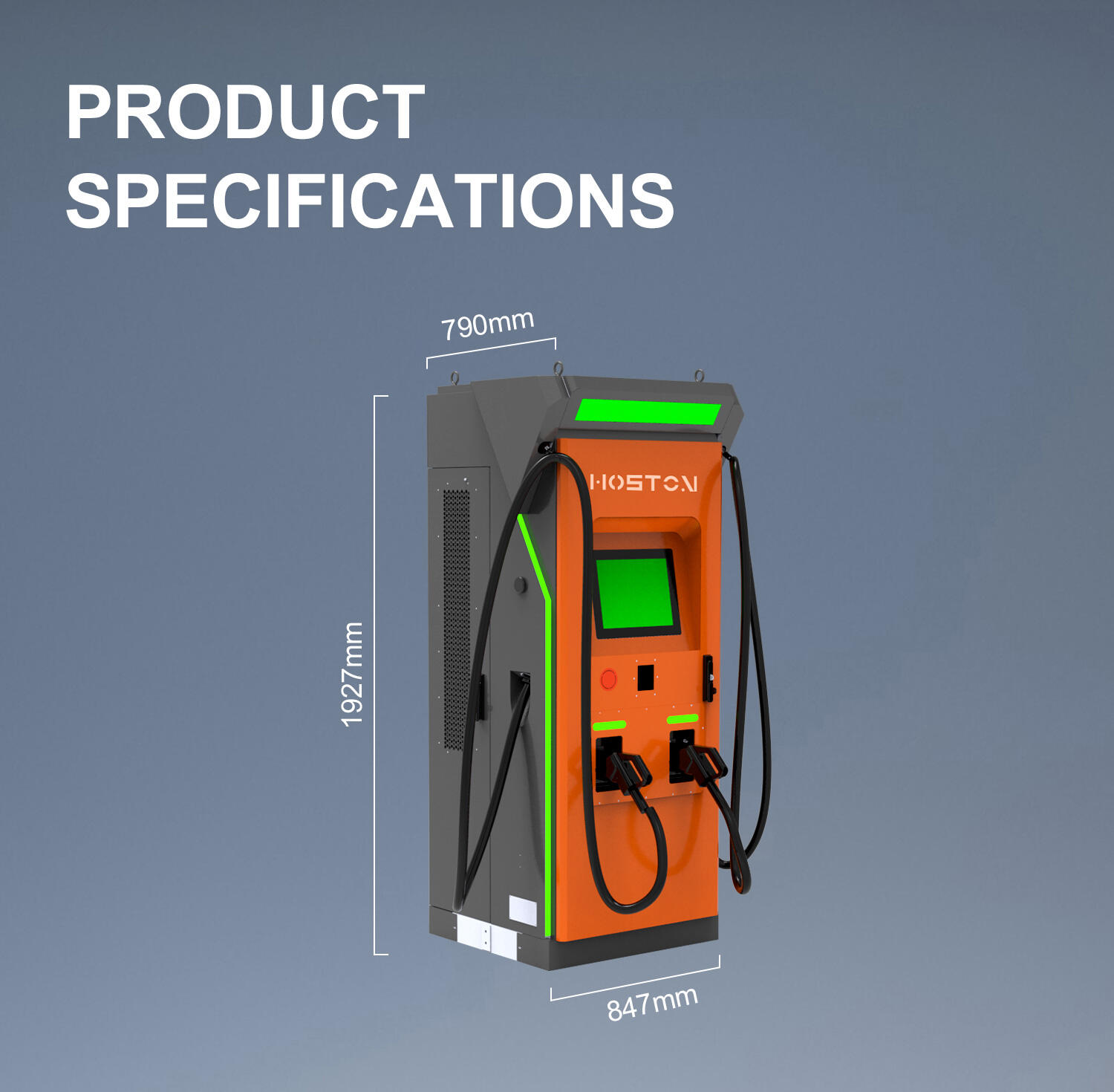

Dimensions (W x D x H)

847mm×790mm×1927mm

Weight (KG)

469kG

Connector Cable Length

The standard is 5m, and 5-10m(optional)

Degree of protection

IP55

Mechanical Impact

IK10

Pollution degree (PD)

PD3

Noise (lab environment)

≤65dB

Protection function

Overvoltage, Undervoltage, Short circuit, Overcurrent,
Overheating, Current leakage, Surge and Access control and IMD

Standards

EN 61851-1:2019; EN IEC 61851-21-2:2021; EN 61851-23:2014; EN 61851-24:2014; DIN 70121 / ISO 15118;

Certification

CE

Warranty

24Months with Warranty Extensions Available
