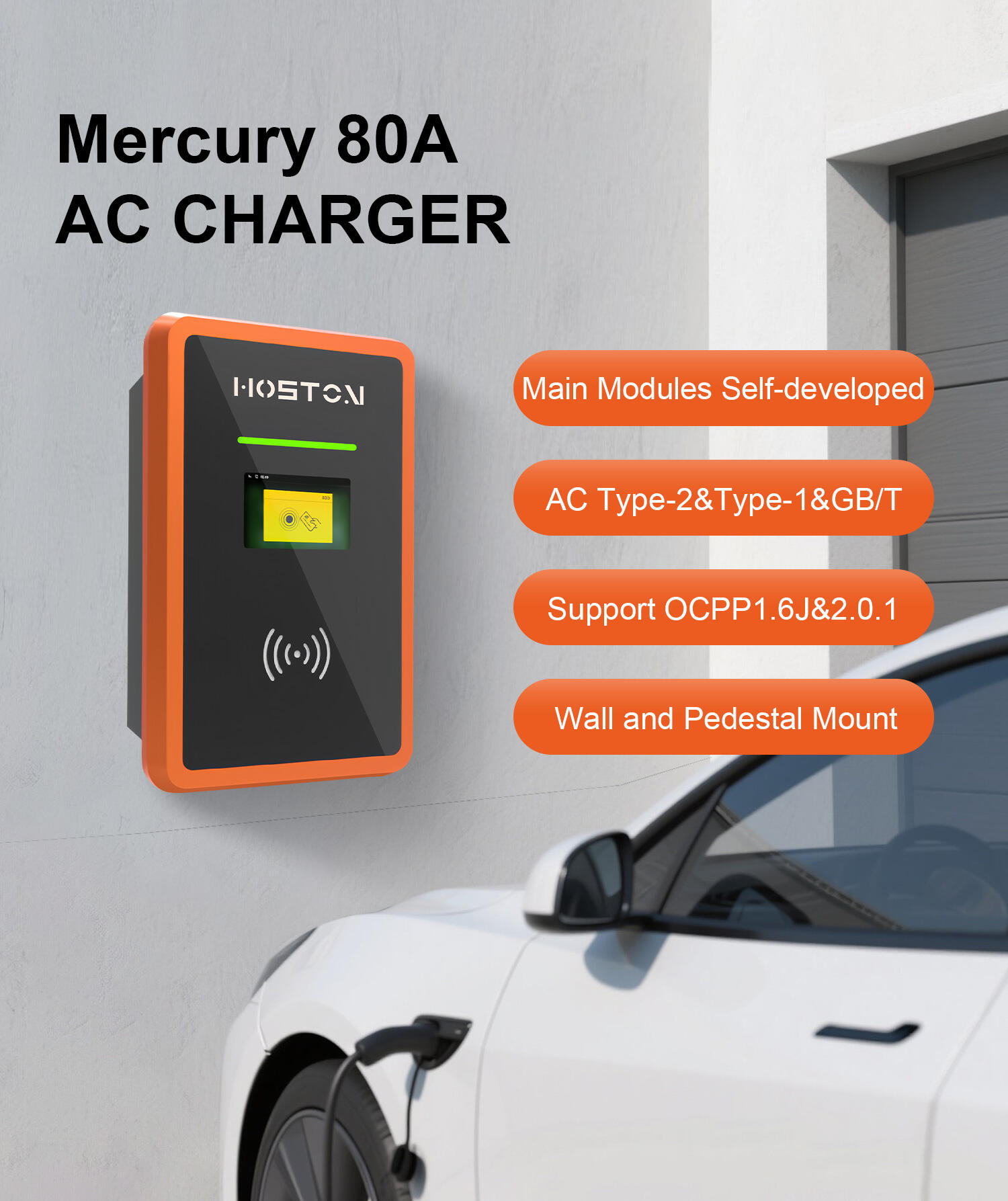

Smart 80A AC EV Charging Station – OCPP 1.6 Compatible for Home & Commercial Use

  • Overview
  • Product Details
  • Description
  • Applications
  • Specifications
  • Recommended Products
Overview

Place of Origin:

Guangzhou, China

Brand Name:

HOSTON

Model Number:

ME80AU0CH80A-B

Certification:

CE



Minimum Order Quantity:

1

Packaging Details:

Standard Exporting Packing. OEM brand can be printed/pasted.

Delivery Time:

15-40 days,depend on specific model and quantity

Payment Terms:

*For order less than US$ 10K, full payment before production.

*30% T/T Payment before production, 70% T/T Payment before shipment.



Product Details

Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details Product Details

Description

Fashionable and Convenient: The appearance design is fashionable and simple;

High compatibility: Standard J1772 connector is adopted, which can be widely compatible with electric vehicles or plug-in hybrid vehicles with American standard AC charging interface;

LCD screen: 5LCD screen with light display provides users with a better operating experience;

Warranty period: 2 years warranty for passive components

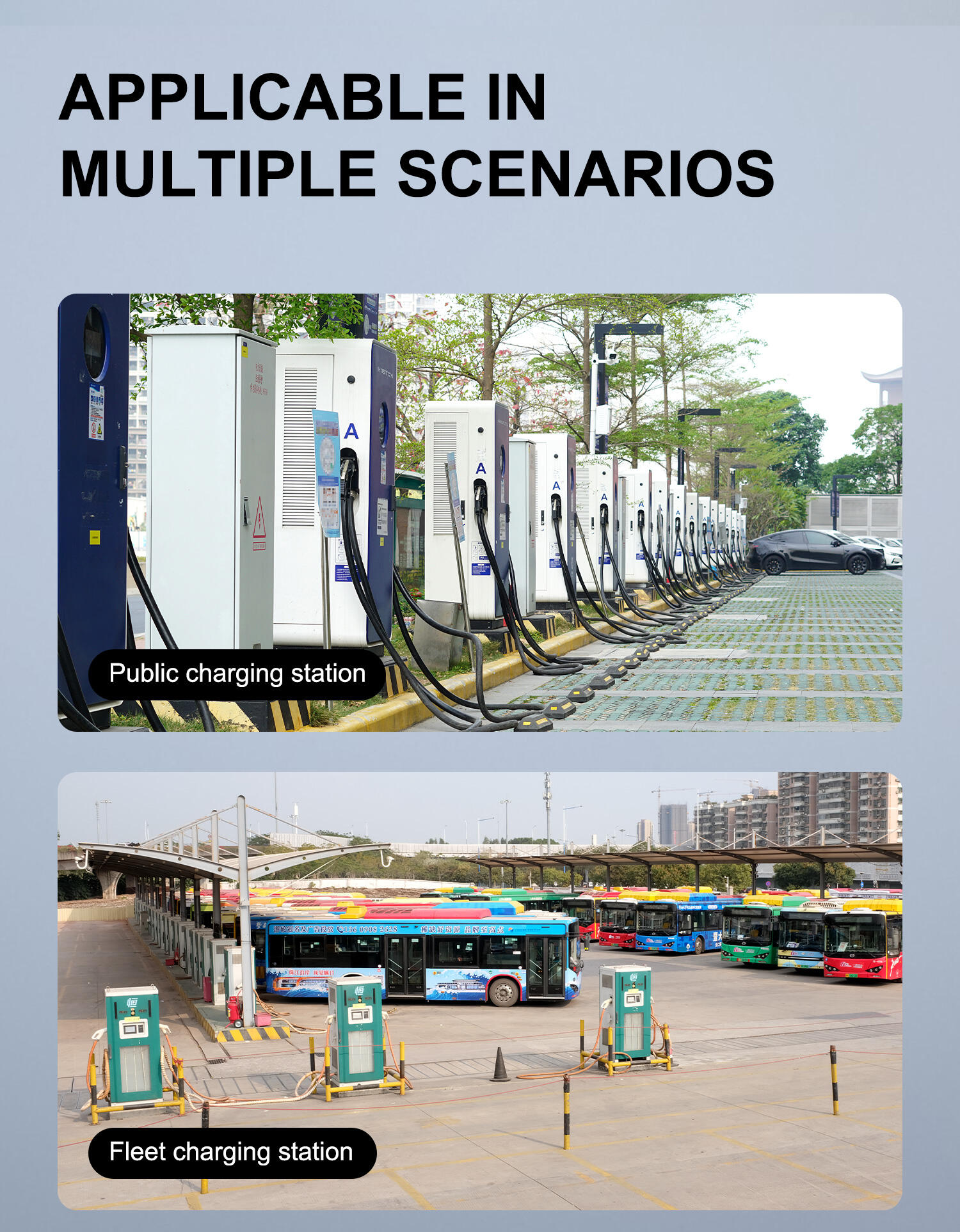

Applications

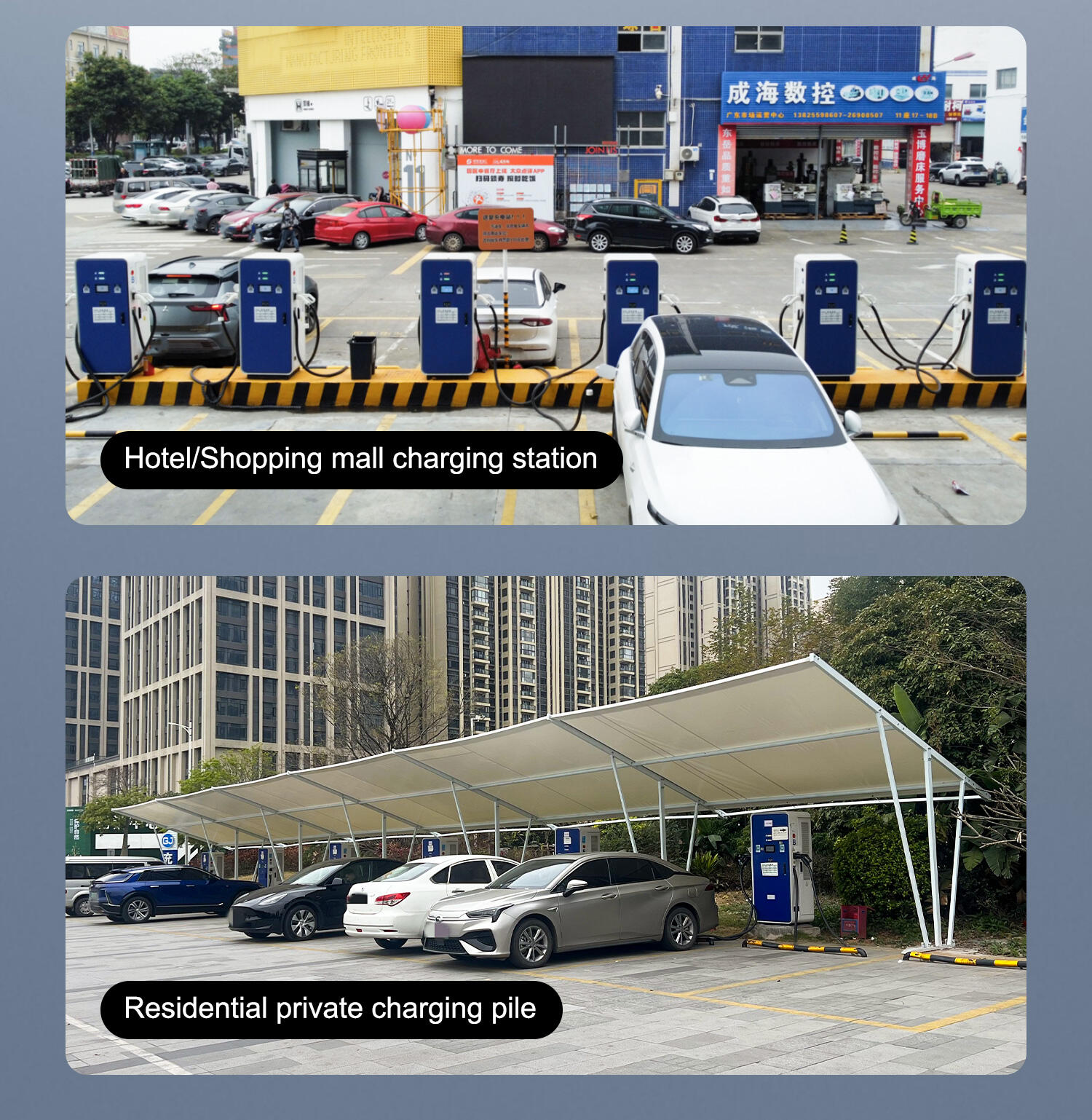

Suitable for all types of electric vehicles in the market, including electric vehicles, electric trucks, electric buses, electric yachts, electric forklifts, etc;

Specifications

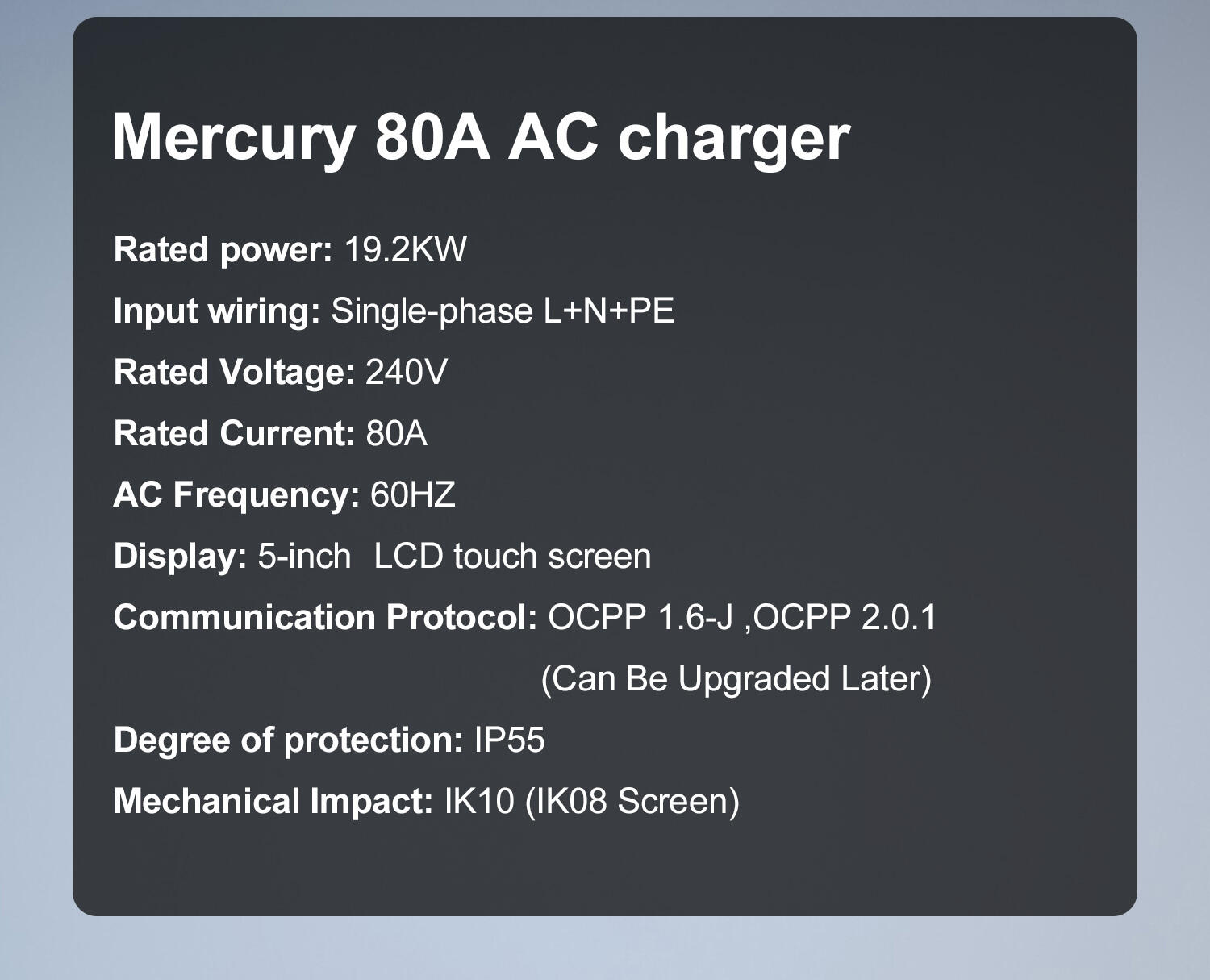

Rated power

19.2kW

Input Wiring

Single-phase L+N+PE

Rated Voltage

240VAC

Rated Current

80A

AC Frequency

60Hz

Operating Temperature

‘-30℃~+50℃

Operating Humidity

5%-95% without condensation

Altitude during operation

≤ 2000M

Internal Cooling Method

Natural cooling

Display

5-inch LCD touch screen

LED Indicators

Tri-colour LEDs

Access Modes

RFID Card, QR code scanning via APP, Credit Card(optional)

Network Interface

3G/4G/Ethernet

Communication Protocol

OCPP 1.6-J ,OCPP 2.0.1 (Can Be Upgraded Later)

Installation Method

Floor-standing or Wall mounted

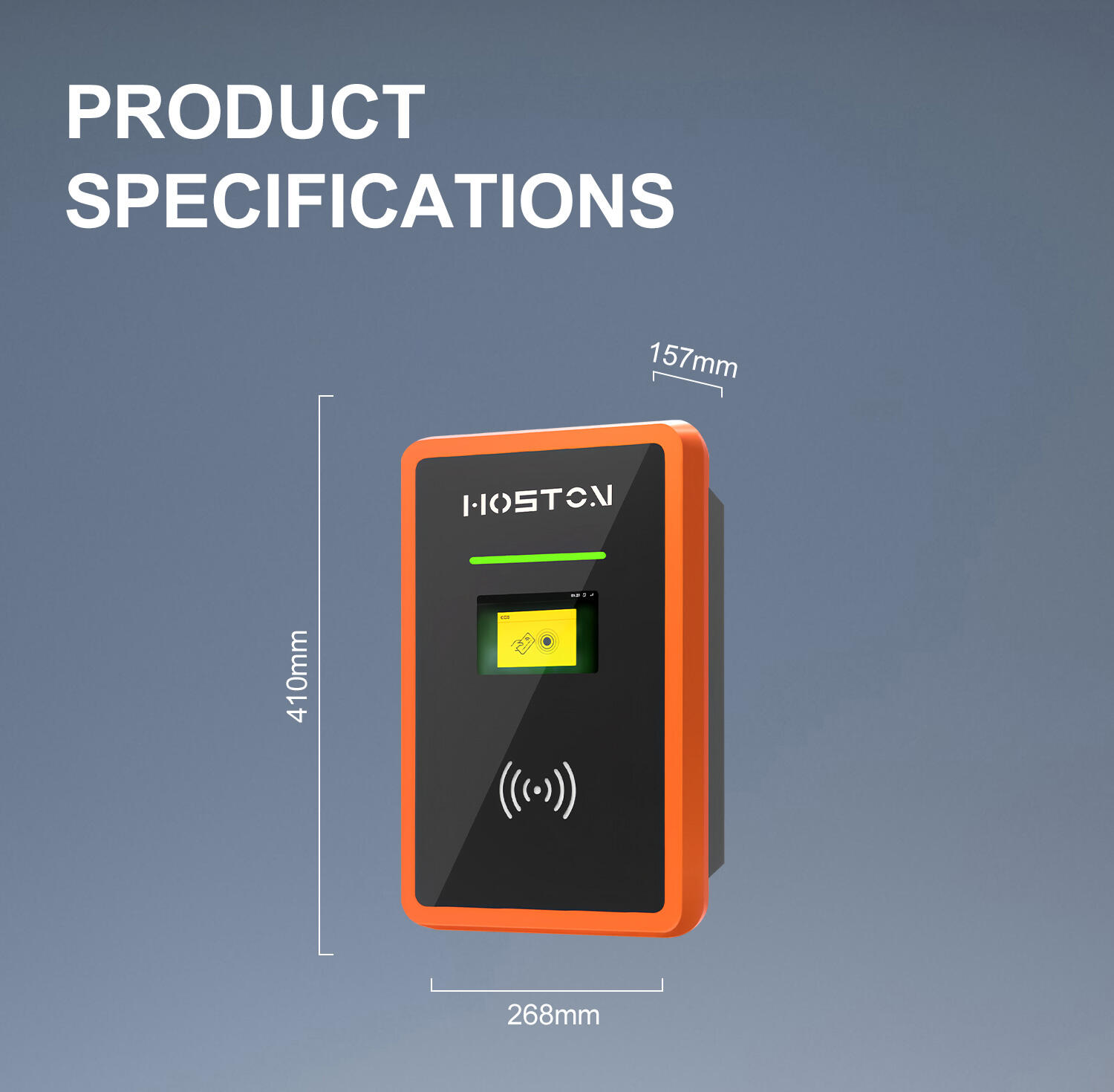

Dimensions (W x D x H)

268mm×157mm×410mm

Weight (kG)

12KGMachine body+6KG(Column)

Connector Cable Length

The standard is 5m, and 5-10m(optional)

Degree of protection

IP55

Mechanical Impact

IK10(IK08 Screen)

Pollution degree (PD)

PD3

Noise (labenvironment)

≤50dB

Grounding Protection

YES

Protection function

Overvoltage, Undervoltage, Short circuit, Overcurrent,
Overheating, Current leakage, Surge and Access control

Standards

NEC Article 625 and UL 916, UL 2594,
UL2231-1, UL2231-2, UL 1998, CSA C22.1

Certifications

CE

Warranty

24 Months

Rated power

19.2kW

Input Wiring

Single-phase L+N+PE

Rated Voltage

240VAC

Rated Curren

80A

AC Frequency

60Hz

Operating Temperature

‘-30℃~+50℃

Operating Humidity

5%-95% without condensation

Altitude during operation

≤ 2000M

Internal Cooling Method

Natural cooling
