Faahfaahin
| Meesha Asalka: | Guangzhou, China |
| Magaca Brand: | HOSTON |
| Lambarka Modelka: | ME022C0CH022-B |
| Tasdeeqigii: | CE |
| Sharciga Dhibaato ee Kugaduud Ah: | 1 |
| Furaha Talaalada: | Dabmarka Exports Standard. Marka ka mid ah OEM la sameyn doono/la kala guurdo. |
| Wakhtiga aad ugu yaraysid: | 15-40 maalmood, waxay ku yimid oo dhexeeya modelka iyo shacada ah |
| Shurtida Casirada: |
*Marka heshiiska ayaa lagu joogto US$ 10K, dalilka gooniyeed bixinta. *30% T/T Dalil bixinta qofka ah, 70% T/T Dalil bixinta qofka ah marka uga arko. |
Sharaxaad

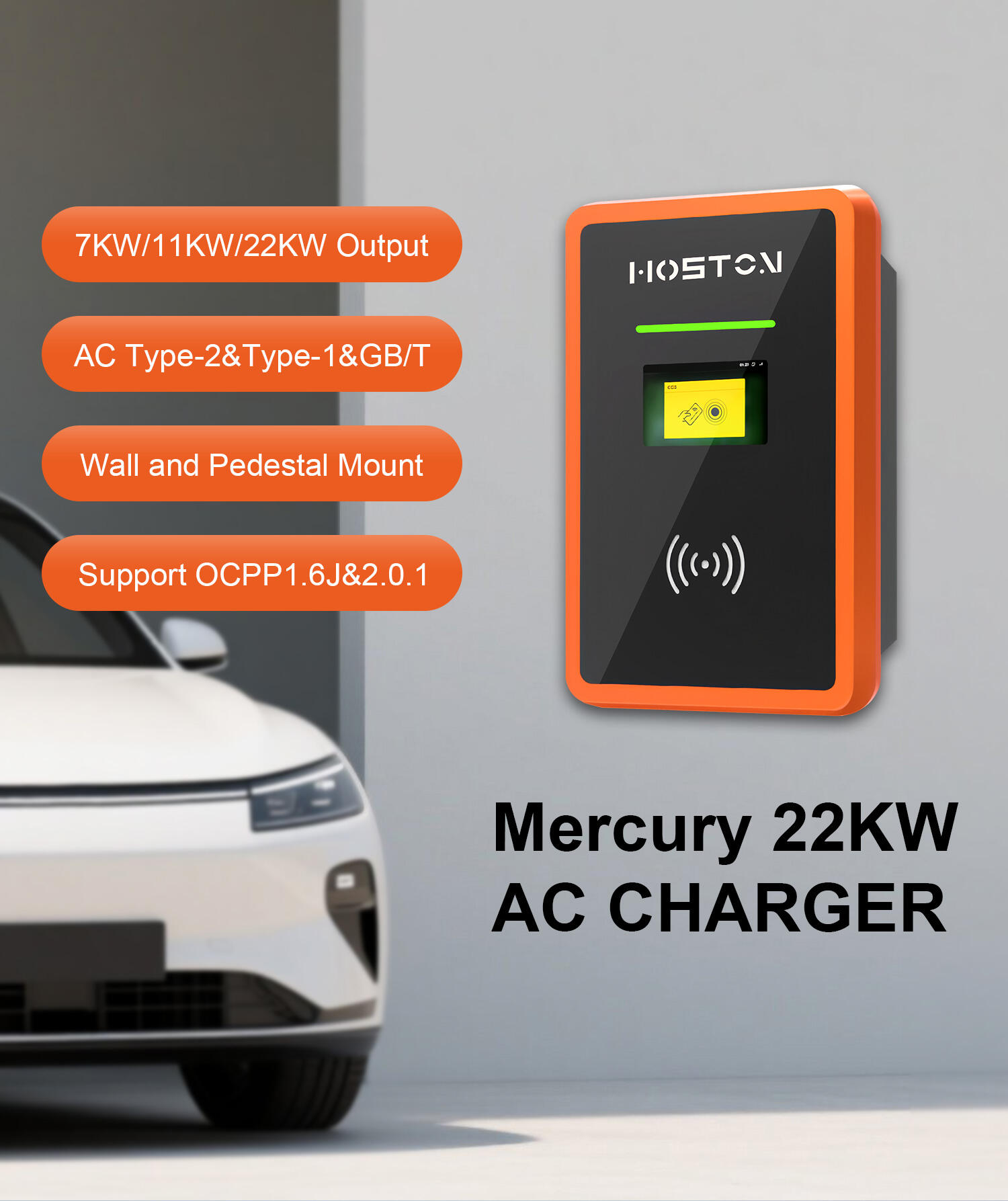

11kW-22kW Xaalad: Charger 22kW ayaa isku soo gaaritaan input 32A 3-phase iyo ka dib marka loo socdo; compatible to 16A 3-phase, oo xaaladka ayaa 11kW.
AC Type-2 &AC Type-1 &GB/T: Ku jiraan AC Type-2 (IEC 62195), AC Type-1(SAE J1772) iyo GB ports.
Dhagax iyo Pedestal Mount: Maxyood dhagax iyo pedestal, marka ah ugu yar ee dhammaadaha koorida.
MID meter Included: Mid meter ayaa ka mid ah CE standard, si ays ku jiraan in lagu sameyn doontaan oo kale sidoo kale.
Communication Protocol: OCPP1.6&2.0; OCPP integration to global EV charging platform.

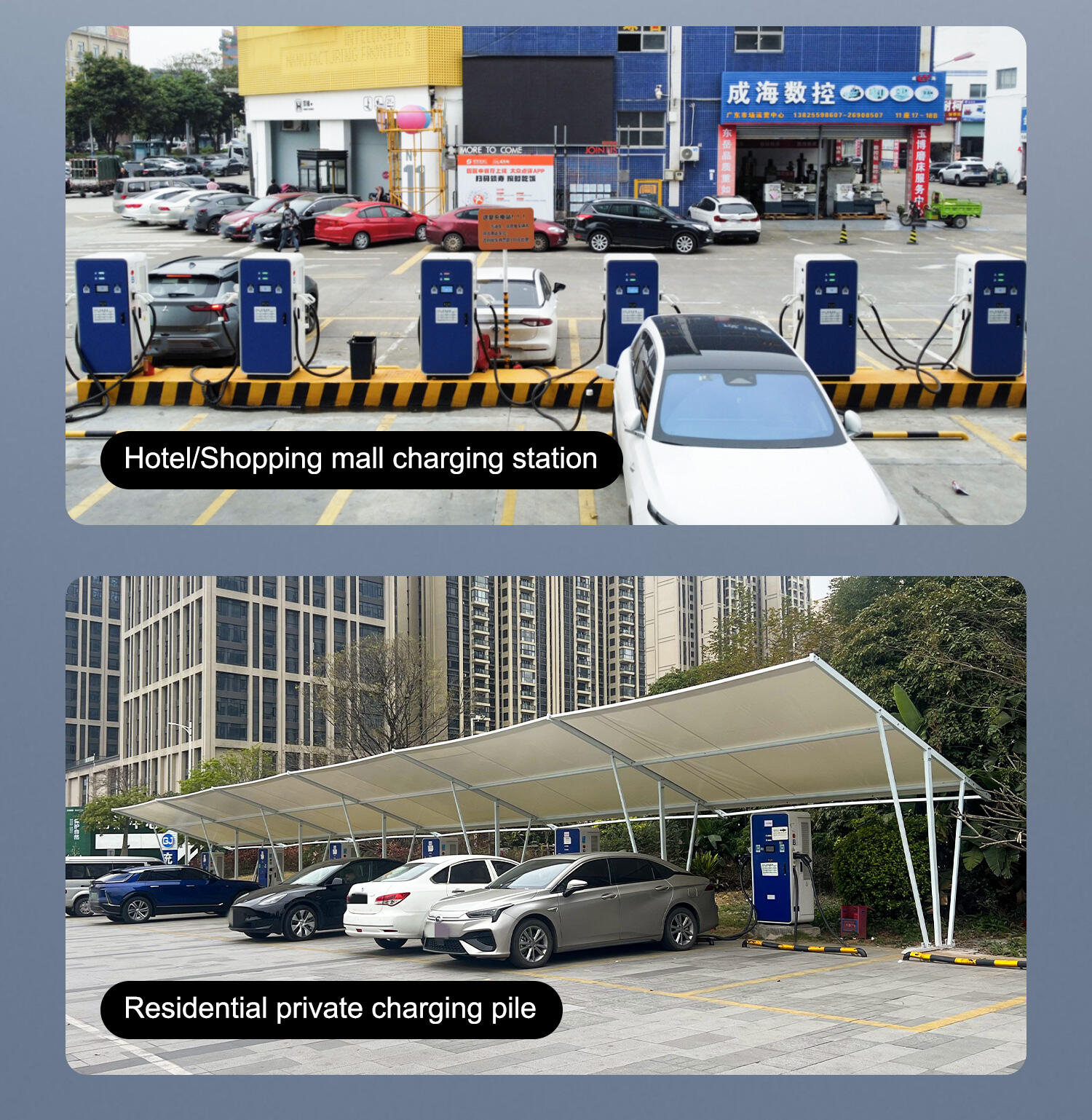

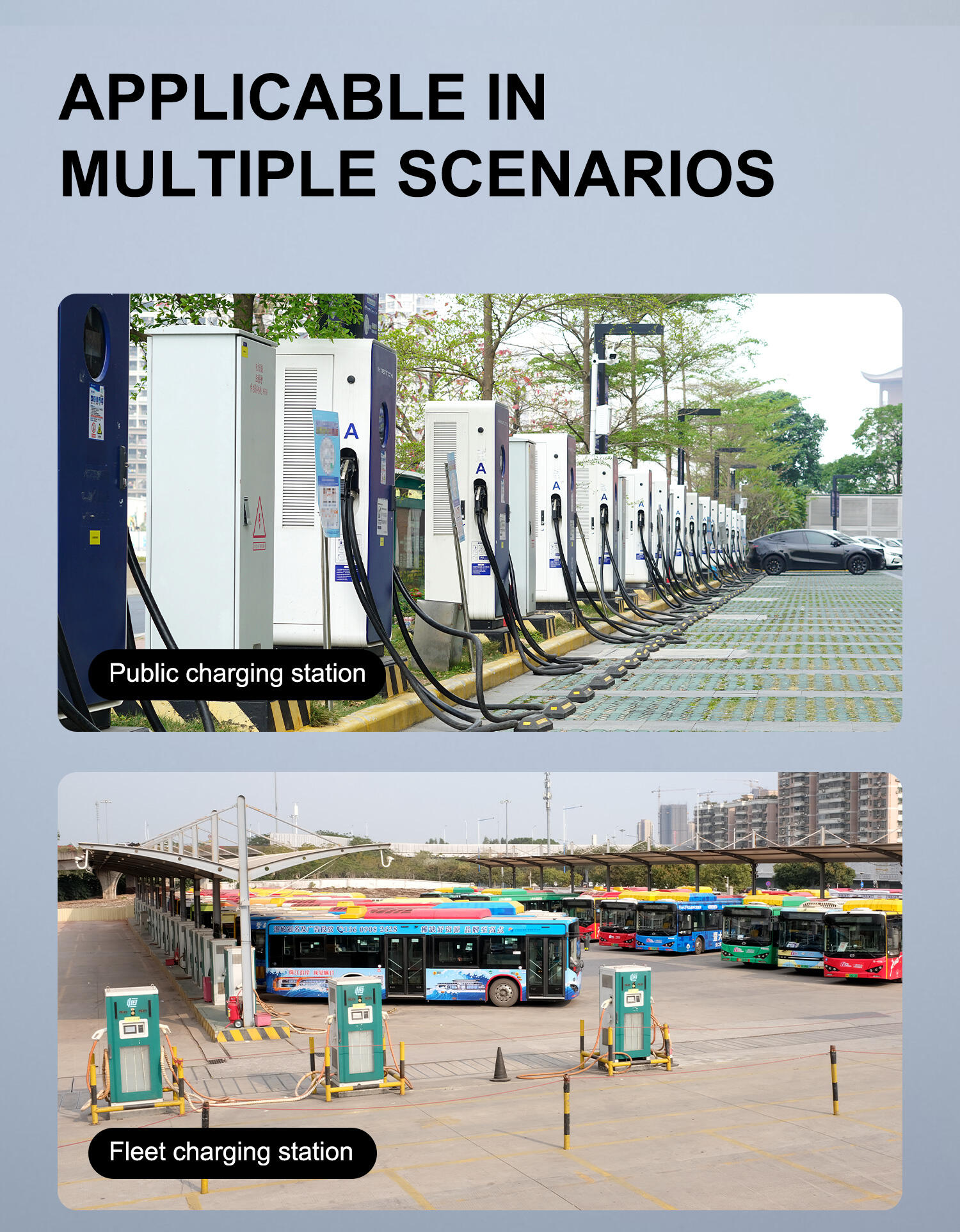

Codsiyada
Ku jiraan gacanta hadda tram.

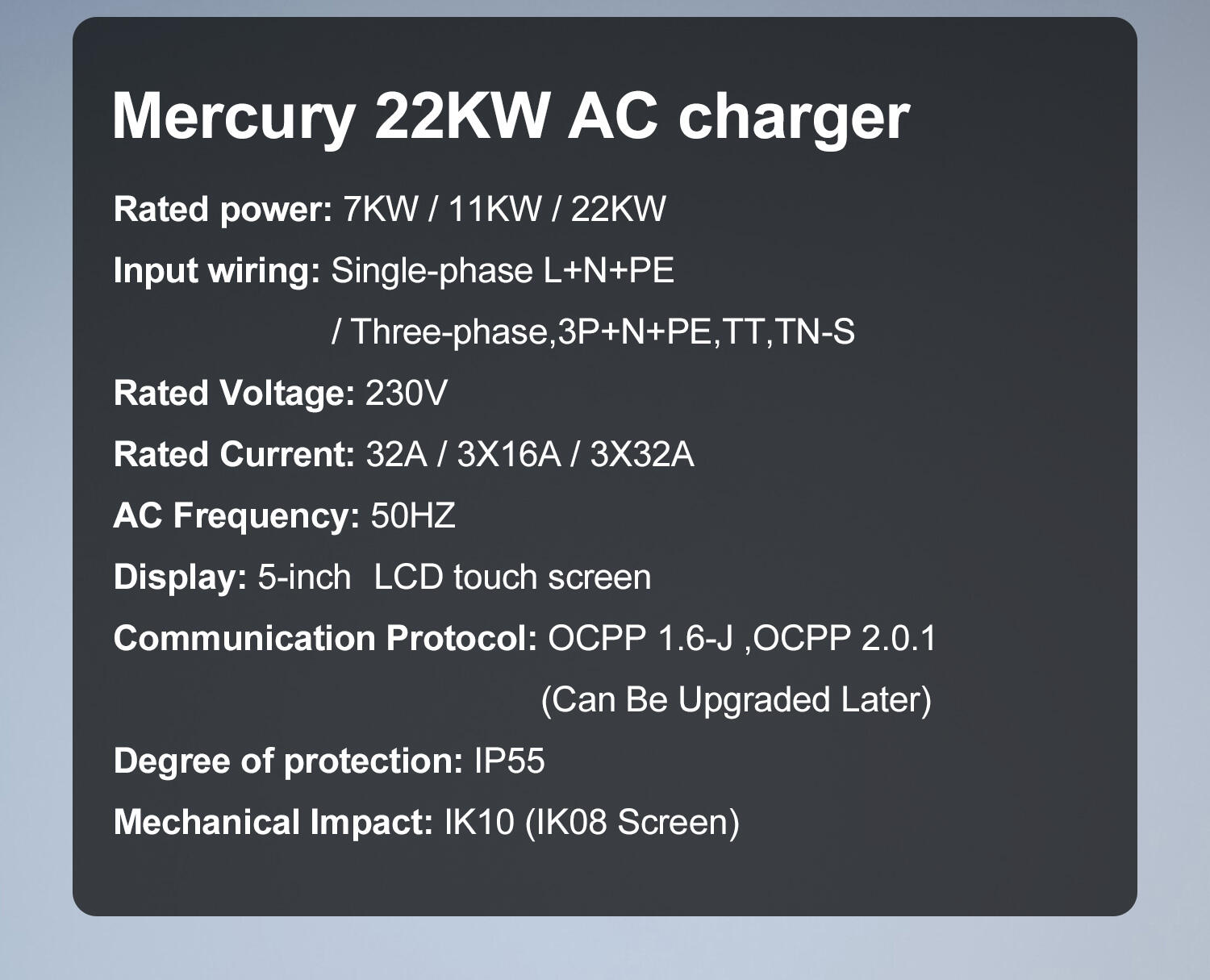

Xoggaarka
| Awoodda lagu magacaabo | 22kw |
| Xiriirka Soo Kiray | Dhulka weyn, 3P+N+PE, TT, TN-S |
| Danab lagu qiimeeyay | 230VAC |
| Caqabadhis Dhibaato | 3×32A |
| Tirada AC | 50Hz |
| Caano Caano | '-30℃～＋50℃ |
| Ragiska ammadda | 5%-95% ka badan ayaa waxbarasho |
| Gudaha dhexdeeda | ≤ 2000M |
| Cuneysinta Dhibaato Koonfurta | Xalad guriga |
| Dheerashada | shaqiilka LCD 5-inch |
| Dhaxalka LED | LEDs ka dib ugu jiro |
| Noqoshaha Eegga | Kartiga RFID, Skaan QR code ka APP |
| Cabdii Network | 3G/4G/Ethernet |
| Protokoolka Teleephanka | OCPP 1.6-J, OCPP 2.0.1 (Waxaa lagu soo diiwaangelin karaa si toos ah) |
| Taqanadda istallashada | Dhagax oo ku yaal ama Dheer leh |

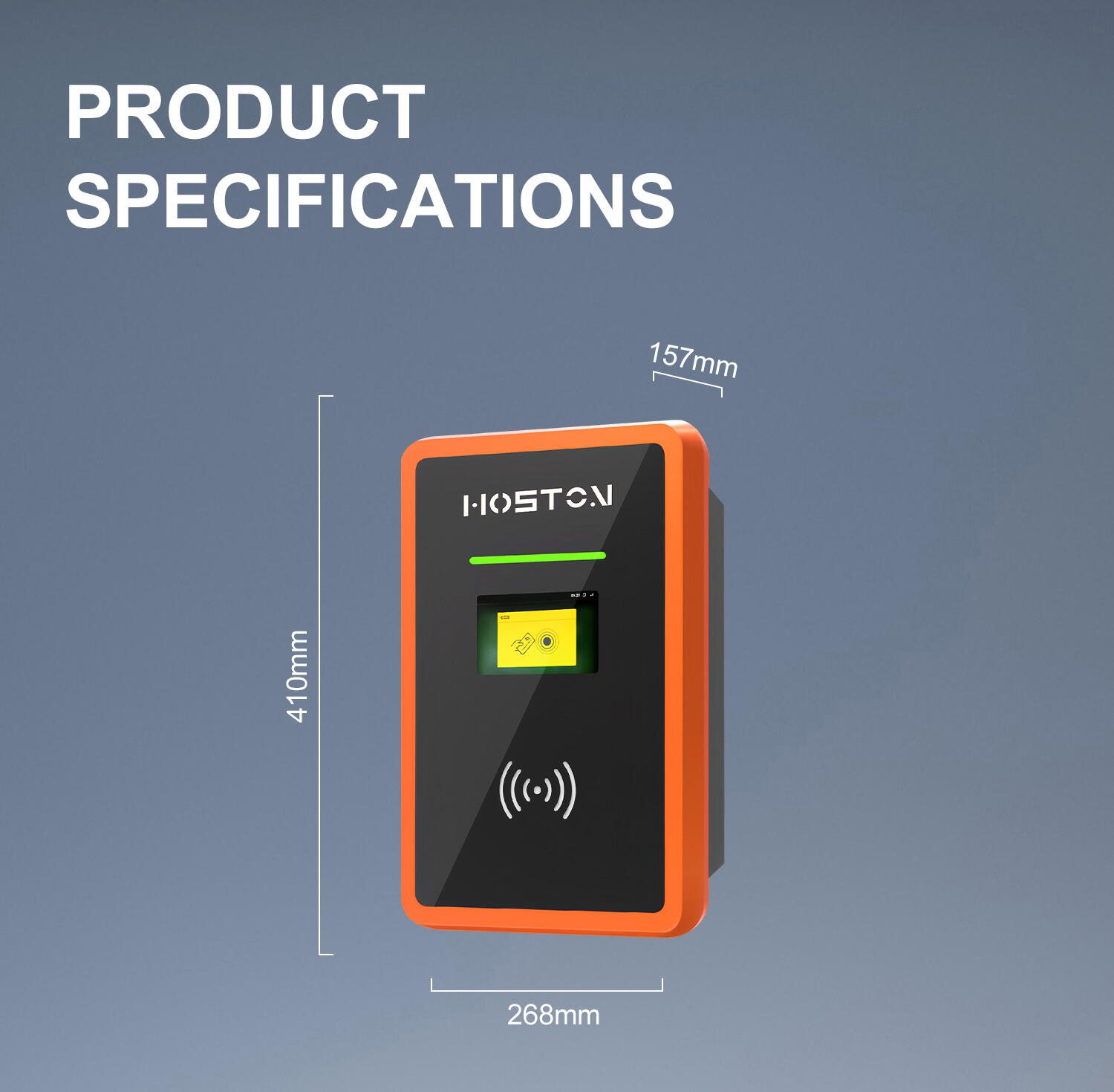

| Qaybka (W x D x H) | 268mm×157mm×410mm |
| Miisaanka (Kg) | 11KG (guri maashuuka)+6KG (bagaan) |
| Talooyinka kableynta | Xiriirka waxaa lagu yeelo 5m, oo 5-10m (xukun ah) |
| Laabooyinka badbaadaha | IP55 |
| Dibadda mekanikaa | IK10 |
| Dugsi badbaadada (PD) | PD3 |
| Caafimaad (doorshaha lab) | ≤65dB |
| Xiriiradda carruurtanka | Haa |
| Funkushinka xiriira | Walba ah ee dhalinyarada, Dhalinyarada weyn, Dhacdo, Dhalinyarada weyn, Caano caano, Leexiinta carruurta, Carruurta iyo Kooxinta lacagga |
| Heerarka | IEC 61851-1:2017; IEC 61851-21-1:2017; IEC 62196-1:2014; IEC 62196-2:2016 (Type2); |
| Sharcigelinayaasha | CE |
| Warantii | 24Kuwaad ka dib markii aad ugu yaraan Warranty Qeybsiinta |
